Bus topology: structure, use and benefits for your IT infrastructure

The most important thing in brief:

  • What is a bus topology?: A simple network structure where all devices are connected via a common main cable.
  • Benefits & areas of application: Cost-effective and quick to set up — ideal for small networks or industrial applications.
  • Challenges & risks: Prone to failure in the event of cable interruptions, limited scalability and careful planning required.
  • Bus topology simply explained

    What is a bus topology?

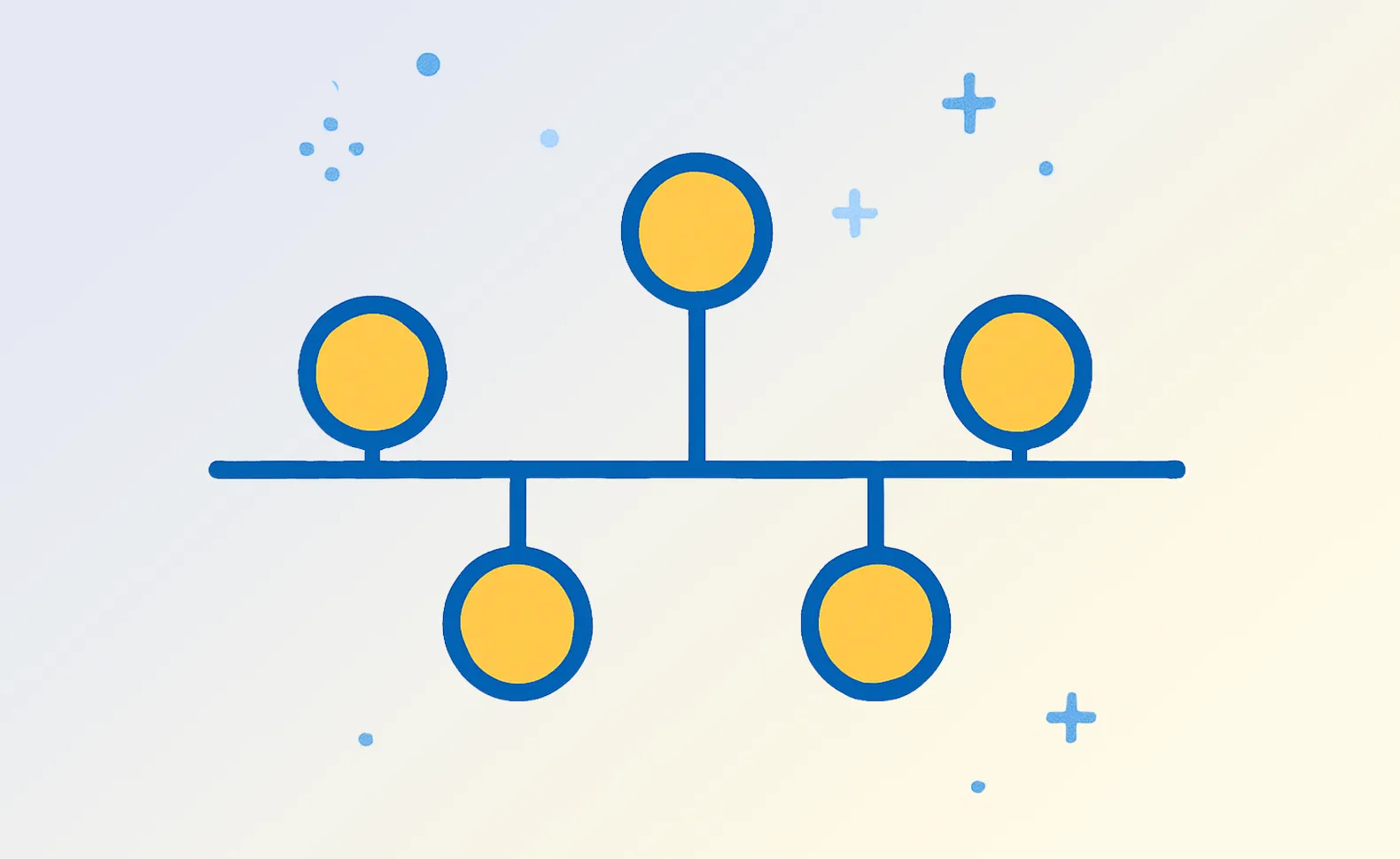

    Die Bus topology — also bus topology written — is one of the simplest and oldest network architectures. All devices (e.g. computers, servers, printers) are connected to each other via a single cable, the so-called bus. There are terminating resistors at both ends of this main cable, which terminate the signal at the end of the bus to prevent reflections.

    Bus topology characteristics

    • All devices share the same data channel
    • Data is sent serially through the bus
    • Only one device can communicate at a time
    • If the bus cable is interrupted, the entire network is affected

    Bus topology was particularly common in the 1980s and 1990s, for example in networks with Coaxial cables (10Base-2). Today, it is still primarily used in smaller networks or special industrial applications, e.g. in the area of factory automation or protocols such as CAN-Bus or Profibus.

    Why is bus topology still relevant today?

    Even though modern networks are often based on star or meshed topologies, bus topology still offers advantages in certain applications:

    • Simple structure and low costs: Less cable material, easy implementation
    • Quick installation: Ideal for small networks with low requirements
    • Specialized applications: Widely used in industry or vehicles with CAN bus

    Statutory requirements and standards

    In safety-critical areas, such as in mechanical engineering or safety-related control systems, bus topologies are used together with protocols such as Profibus or Modbus. There are strict documentation, redundancy and fault tolerance requirements here. Standards such as IEC 61158 (fieldbus standard) or ISO 11898 (CAN bus) set clear framework conditions for deployment.

    A current challenge is Documentation requirement as part of basic IT protection or ISO 27001. IT managers must be able to comprehensibly document the network infrastructure, identify weak points and quickly rectify faults.

    Implementation: Design and documentation of a bus topology

    1. Planning

    • Which devices should be connected via the bus?
    • What is the maximum length of the bus? (Depending on the medium, e.g. max. 185m at 10Base-2)
    • Where are potential sources of interference?

    2. Construction

    • Use of suitable cables (e.g. coaxial cable, twisted pair on modern field buses)
    • Connect the devices with T-connectors or branches
    • Terminating resistors at both cable ends

    3. Documentation

    With the Network discovery Docusnap can also automatically recognize and document simply structured networks such as bus topologies. Through a agentless inventory Docusnap analyses the connected devices, interfaces, and connectivities.

    What should be considered during implementation?

    • Fault tolerance: A single cable break paralyzes the entire network
    • Limited scalability: As the number of devices grows, the transmission capacity decreases
    • Scheduling: Incorrectly set or missing terminating resistors lead to network errors
    • Sources of interference: Electromagnetic interferences must be considered

    Especially in mature IT landscapes, you quickly reach the limits of a bus structure. Continuous review, planning and documentation is all the more important.

    With Docusnap's topology planner, visual network plans can be generated that represent the bus structure and its connections at a glance.

    Docusnap in use: Your benefits with bus topologies

    1. Transparency

    Docusnap gives you a visual overview of your bus topology. All devices and their connections are automatically recorded.

    2. Failure analysis

    Thanks to the detailed presentation, sources of error can be identified quickly. Whether it's missing scheduling or broken segments — Docusnap saves you valuable time in the event of an error.

    3. Compliance & Security

    Documentation with Docusnap helps you comply with standards such as ISO 27001 or basic IT protection. All information can be exported in an audit-proof manner.

    4. History and change tracking

    With the Change documentation With Docusnap, you can keep an eye on all developments. Especially for older bus topologies in established networks, this process helps with root cause analysis.

    Conclusion: Use bus topology wisely and document it optimally

    Bus topology continues to offer advantages — whether due to its simplicity, low costs or specific areas of application. However, it is susceptible to faults, poorly scalable and requires exact documentation. This is exactly where Docusnap helps: From automatic recognition to visual network plans to audit-proof export functions, the software offers everything IT managers need for reliable network analysis. This allows you to avoid surprises such as in the example described above — and ensures stable, verifiable IT operations.
