Mesh topology — Robustly connected for maximum reliability
  • What is a mesh topology?: A network design in which each node is directly connected to several others — for maximum redundancy and resilience.
  • Benefits of mesh topology: High reliability, flexible expandability and self-healing network structures make them ideal for critical applications.
  • Typical areas of application: Proven in smart cities, Industry 4.0, large WLAN areas and wherever reliable communication is crucial.
  • Mesh topology simply explained — advantages, structure & practical examples

    What is a mesh topology?

    Die mesh topology (also known as a “mesh topology”) describes a network design in which Each node is directly connected to several others. This creates a close-meshed network that high redundancy and reliability provides.

    There are two main variants:

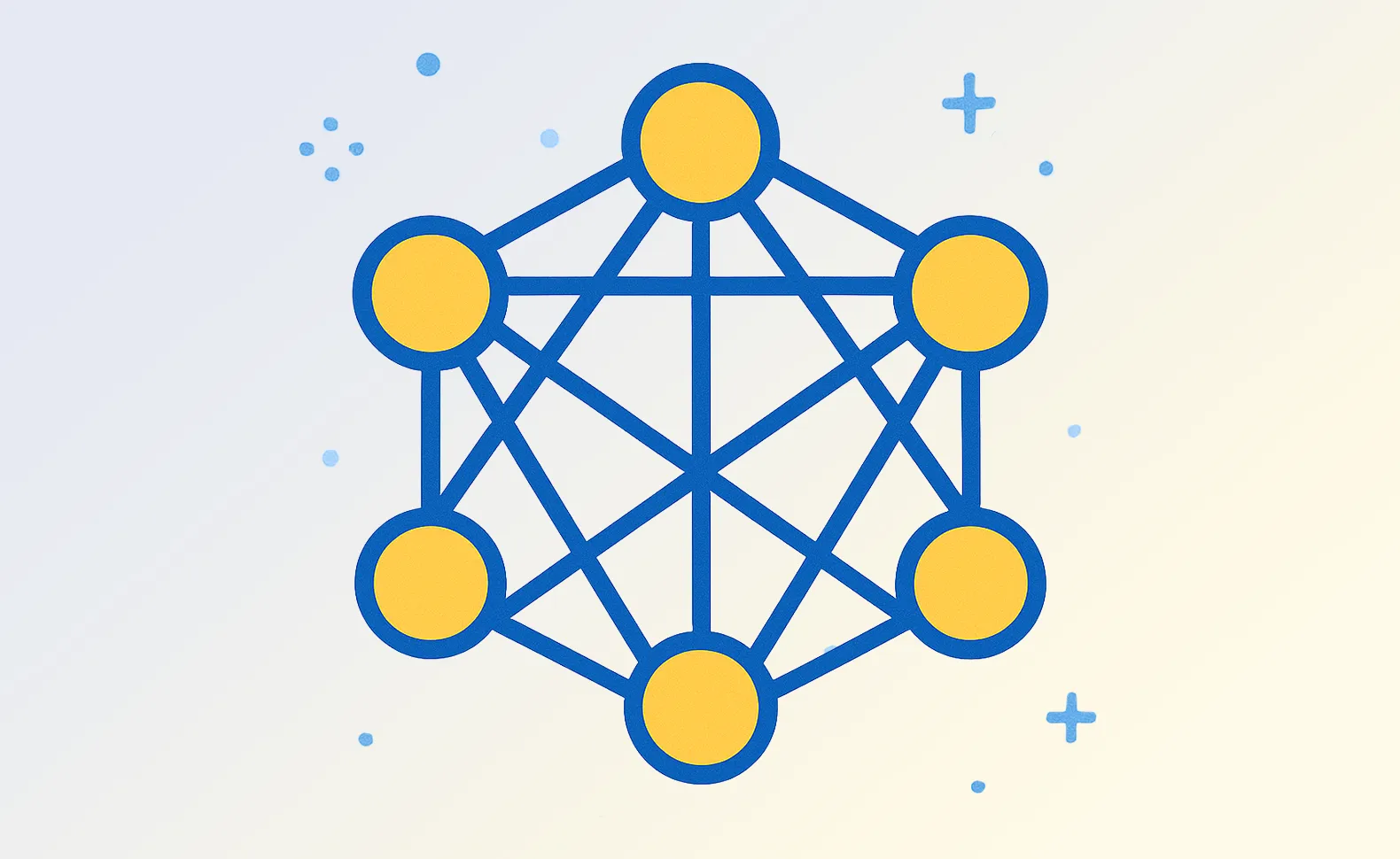

    • Full mesh topology: Each node is connected to every other node.
    • Partial mesh topology: Only selected nodes have multiple connections.

    In both cases, a decentralized system is created that is particularly robust against failures of individual components.

    Why is mesh topology necessary?

    In times of increasing digitalization, increasing IoT devices and distributed systems, the Network availability as a business-critical requirement. Mesh networks provide an answer to challenges such as:

    • Redundancy requirement: In classic star or bus topologies, a failure quickly endangers entire network segments.
    • scalability: New nodes can be easily added without interrupting existing connections.
    • Flexibility: The self-healing behavior of mesh networks is particularly effective in dynamic environments (e.g. logistics, smart buildings, sensor networks).

    Although there is no legal requirementsthat explicitly require a mesh topology but, for example, in the context of KRITIS regulation or the IT Security Act The reliability of network infrastructures is increasingly being used as a testing and planning criterion.

    Mesh topology: advantages and disadvantages at a glance

    Benefits of mesh topology

    • High level of reliability through redundancy
    • load distribution across multiple paths
    • Self-healing networks — Routing is done dynamically via alternative paths
    • Easy expandability without interruption
    • No central weak point

    Disadvantages of mesh topology

    • High cabling costs when physically implemented
    • Complex routing and management
    • Higher costs through more network components
    • Scaling issues with a complete mesh with a lot of knots

    This is how a mesh topology is implemented

    The structure depends heavily on the respective application:

    1. Network structure planning:
      • Which nodes must communicate with which?
      • Are partial connections sufficient or is full networking necessary?
    2. Selecting the right hardware:
      • Switches, routers, access points that are mesh-enabled
      • Supported protocols (e.g. OLSR, BATMAN for WLAN-Mesh)
    3. Configuring routing algorithms:
      • Automatic route management
      • Redundancy testing
    4. Monitoring and documentation:
      • Monitoring for packet loss, latency, routine efficiency

    Implementation best practices

    • Partial mesh instead of full networking: Lowers costs and simplifies management
    • Select specific routing protocols: Depending on the size and dynamics of the network
    • Don't forget monitoring: Mesh doesn't always mean stable — Docusnap can help make bottlenecks and faulty nodes visible
    • Safe configuration: Encryption (e.g. WPA3) is mandatory, particularly with wireless mesh networks
    • Plan redundancy in a targeted manner: Not every path needs triple protection

    Typical deployment scenarios for mesh topologies

    • Smart cities: Sensors, cameras and control units communicate decentrally
    • Industrial manufacturing: Machines and systems in production connect themselves independently
    • Large-scale WLAN networks: Campus environments, hospitals, hotels
    • Emergency services & military: Communication networks must be mobile, robust and quick to set up

    Documenting and managing a mesh topology — with Docusnap

    One of the biggest challenges when implementing a mesh network is clear documentation. This is where Docusnap comes in — the software solution for IT documentation and Network visualization.

    Benefits of Docusnap in the context of mesh topologies

    1. Automated network inventory

    Docusnap recognizes all network components agentless And shows the actual connections between nodes. Even with complex mesh networks with redundant paths, you can keep track of things.

    2nd Visualization of the network structure

    The topology view provides View mesh connections graphically — ideal for IT planning, troubleshooting, and audits.

    3rd Change documentation

    Docusnap recognizes through regular scans Automatic changes in the network structure — particularly relevant for dynamic mesh environments.

    4th Compliance & audit ability

    Documented mesh topologies make it easy Safety audits or KRITIS tests to pass — Docusnap provides appropriate report templates.

    Conclusion: Mesh topology — strong network through decentralized structure

    The mesh topology is much more than a theoretical network model — it is the answer to real challenges in everyday IT life: Resiliency, scalability, and dynamic communication. However, it requires careful planning, documentation and monitoringto develop their full potential. Docusnap provides the right basis for this: From automatic inventory, visualization, reporting and change documentation — everything in one software.
