Line topology — efficient series cabling for lean networks

The most important thing in brief:

• Definition: A line topology connects devices serially in a single line; each device has exactly two ports so that data and — in the case of PoE — power are passed on from node to node, which is proven in practice for 3-20 devices without major overhead.
• Cost & efficiency advantage: The elimination of central distributors typically reduces cable and installation costs by up to 40%; at the same time, installation time and maintenance costs are reduced, as new nodes are simply plugged into the end of the line.
• documentation: With Docusnap, daisy chain segments can be scanned without agents and visualized as a topology diagram.

What is a line topology?

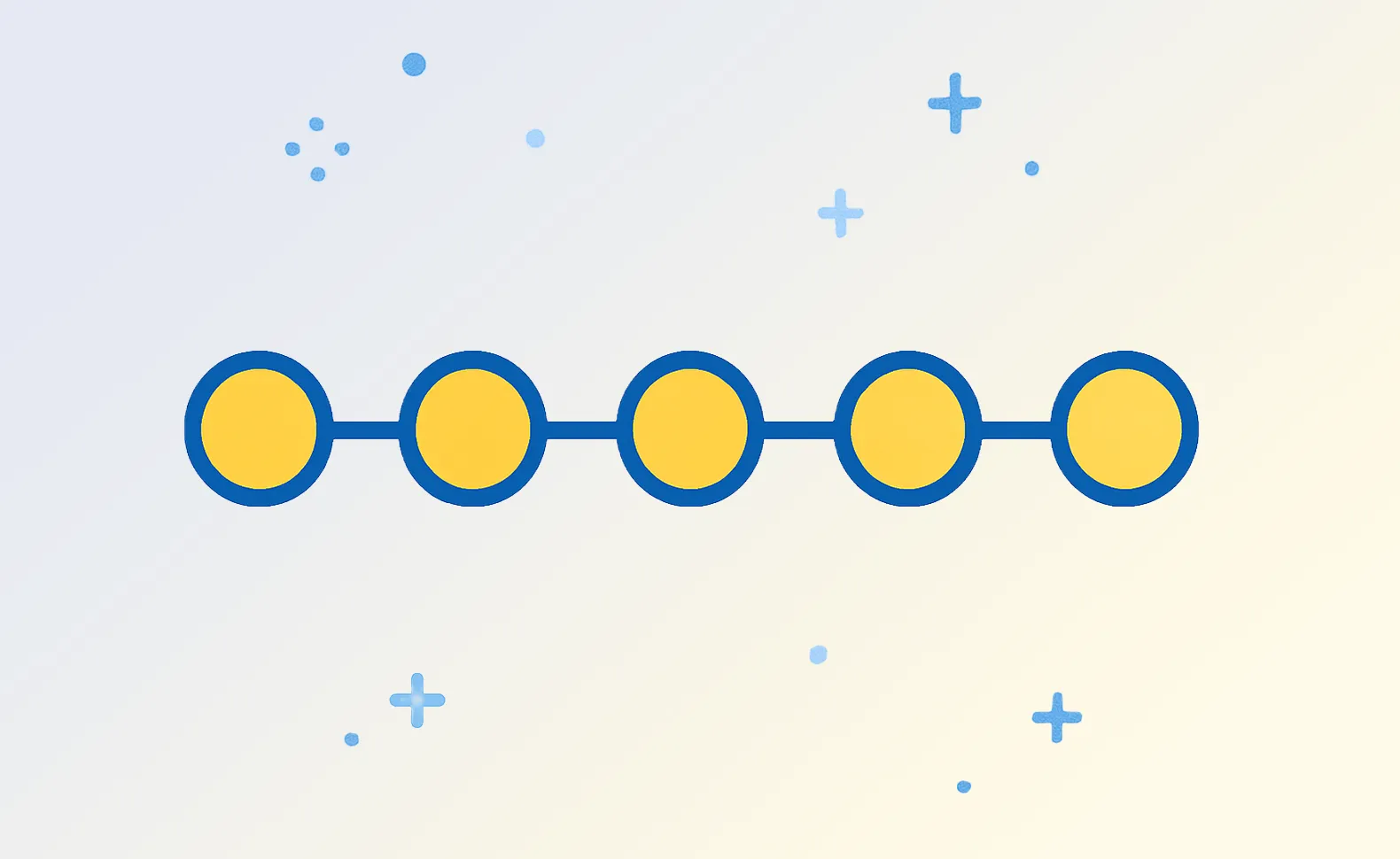

Die line topology (often also Line topology called) describes a network structure in which Each station has exactly two connections has: one input from the predecessor and one output from the successor. Along a physical line (copper, optical wave or serial fieldbus cable), a linear chain from knots. Data packets move sequentially from device to device until the destination is reached.

Core properties of a line topology
- Physically: In a line topology, a continuous cable runs from terminal A across all nodes to terminal B.
- Logical: Depending on the protocol used (e.g. Ethernet daisy chain, RS‑485 or CAN), the data is passed on from station to station either undirected or directed.
- Typical number of participants: A line topology usually consists of three to twenty nodes; higher numbers are possible, but require special attention to signal and latency limits.

In connection with line topology, there is often something called Daisy‑chain‑Principle of speech. Each device is connected serially to the next, so that both data packets and — in the case of PoE solutions — the power supply are “passed through” from station to station. This design saves cabling costs and facilitates temporary extensions, as another device is simply attached to the end of the chain. However, with each additional link, the cumulative latency increases, and the failure of one device interrupts the connection to all subsequent nodes.

Why is the choice of topology important?

The topology has a significant influence on:

1. Reliability & fault tolerance — How many failures does the system tolerate?
2. Maintenance costs & troubleshooting — How quickly can a fault be localized?
3. Scalability & costs — How easy is it to expand the network and how much does each additional node cost?

Just in production-critical environments A suitable topology decides on downtimes, spare parts inventory and IT operating costs. Die Line topology Shines at manageable investment costs, but requires a clear assessment of default risks.

Advantages and Disadvantages of Line Topology

benefits

• Minimal cabling effort — only one cable harness, no star-shaped feedback
• Easy expansion — plug a new node at the end, pick up IP/MAC
• Transparent data paths — Package history clearly comprehensible
• Low hardware costs — no or less active distribution components

drawbacks

• Single point of failure — Failure of a node or section interrupts all subsequent devices
• Increasing latency — every hop adds delay
• Limited length/bandwidth — Signal attenuation and daisy-chain switch limits
• Complex troubleshooting without documentation — missing segment plans make location difficult

Where is line topology used?

Typical fields of application for line topology are found primarily where devices in natural order are arranged and only moderate data rates Need: In production lines and parcel logistics For example, light barriers, scales or PLC modules can simply be looped along the conveyor line, which speeds up installation and saves cable routes. In the Building automation Systems such as KNX‑TP or Modbus RTU use the same string cabling; the comparatively small amounts of data are ideal for linear cable routing.

Even in the lighting technology and on stages The daisy chain is virtually standard because DMX-512 fixtures provide the serial connection directly. Laboratory and test facilities benefit from the ability to temporarily and cost-effectively string together measuring devices or iO-Bricks without having to individually wire each device. Even the Traffic engineering takes advantage of the benefits: PoE cameras along a street can pass on data and power via PoE pass‑through over a single cable, reducing excavation work, mast deployments, and control cabinets.

The role of Docusnap in planning and documenting a line topology

A reliable line topology depends on complete documentation. Docusnap provides an agentless tool for this purpose that captures your network and makes it transparent. Through the inventorying With Docusnap, you create the basis for your network on which you can precisely plan your line or daisy chain segments.

Topology documentation with Docusnap:

• Automated detection of all network components and their relationships
• Graphical presentation the network topology (layer-2 and layer-3)
• saving time through recurring scans and updated plans
• exportation in various formats (e.g. Visio, PDF)
• Compliance with standards such as ISO 27001, BSI basic IT protection through current documentation

More about this feature: Network topology presentation in Docusnap

Step-by-step implementation guide

1. Check the use case

• Cost vs. availability weigh up
• Allowable downtime stipulate
• Daisy chain hardware on Standard compliance (IEC 61010/DIN EN 50173) vet

2. Planning the network components

• Node with two ports and sufficient PoE budget pick
• Cable and plug type adapt to distance & environment; EMC shielding and set terminating resistors clean

3. Consider redundancy

• If required, a Dual strand invest and RSTP/ERPS enabling
• Tail tagging or use cut‑through switching to keep latencies stable

4. Documentation with Docusnap

• agentless scans & use live topology diagrams
• Firmware, PoE balances, and port labels in the Inventory database nurture

5. Installation & testing

• build a chain and Ports/segments Clearly label
• Signal & load tests Perform (iperf), then failover simulating
• Document and approve results

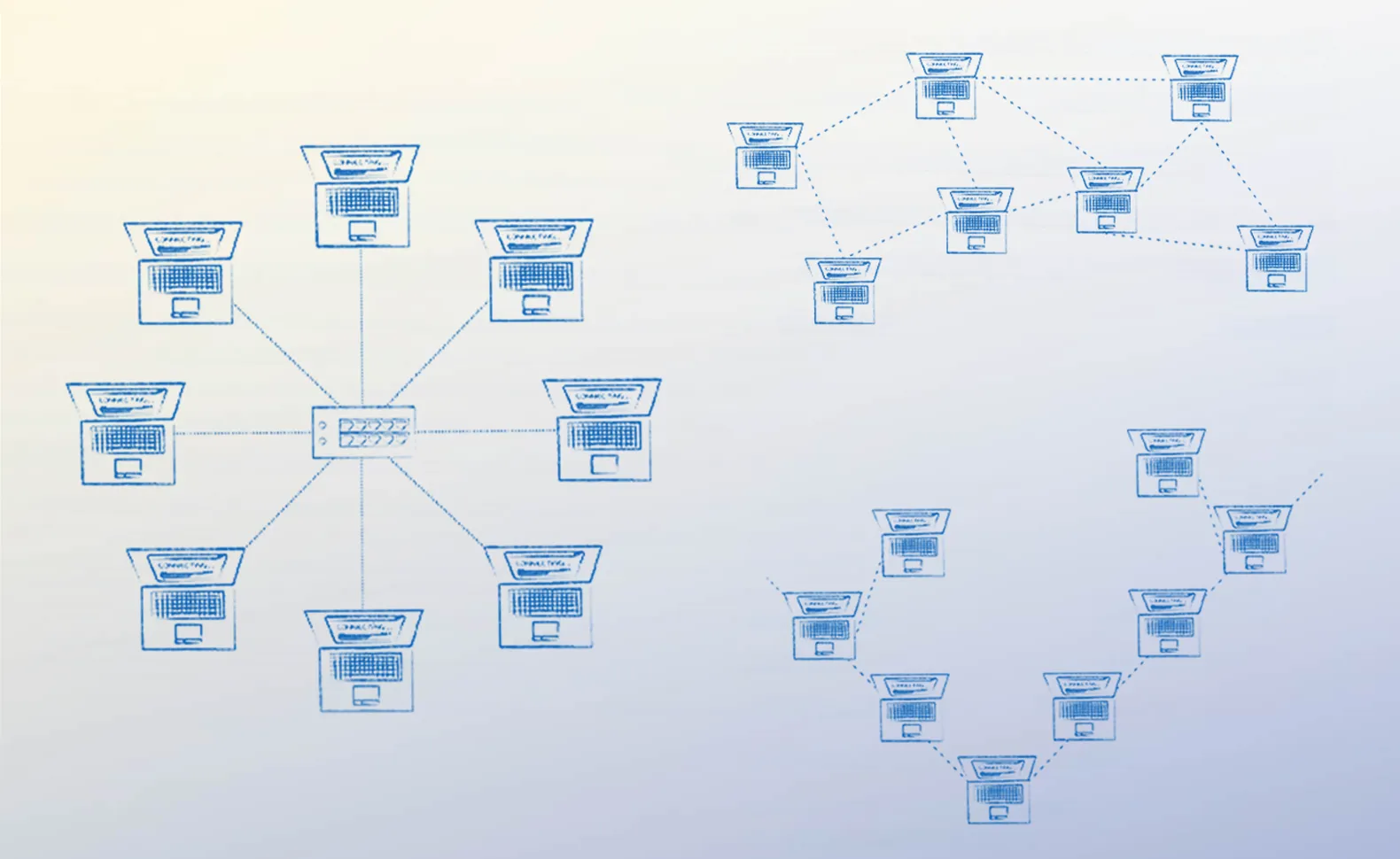

Comparison to other topologies

A direct comparison shows that every network topology has its own strengths and weaknesses:

• line topology: Very low cabling costs, but low reliability. Perfect for linear sensor arrays or DMX lighting systems, where cost and simplicity are more important than maximum redundancy.
• Star topology: Medium installation costs and high reliability, because each device is connected in a star shape to a central switch. Standard in office environments and data centers, as new nodes are easy to add.
• Ring topology: Medium cabling costs with fail-safe performance of medium to high — especially for dual-ring implementations. Commonly used in fiber backbones or industrial networks with rapid MRP.
• mesh topology: High cabling and configuration costs, but provides maximum redundancy and load distribution. Suitable for campus WLANs, backbone routes, and mission-critical applications.
• Bus topology: Low installation costs, but low reliability and limited scalability. Today, it is primarily found in legacy 10Base2 or RS‑485 systems.

Lean networks thanks to linear topology

Die line topology is ideal when installation costs and simplicity Have priority. With dual strands or rapid repair concepts, the risk of SPOF can be controlled. One complete documentation, such as with Docusnap, is mandatory in order to react quickly in the event of faults. Anyone who observes these points operates a lean, traceable and reliable network, which performs its tasks reliably and can be flexibly expanded as required.
